Mini Stand Alone Snubbing Units w/ 2019 Ford F550 Haul Truck
Heavy-Dutyoilfield_equipment
$650,000
Est. $10,833/mo
Description

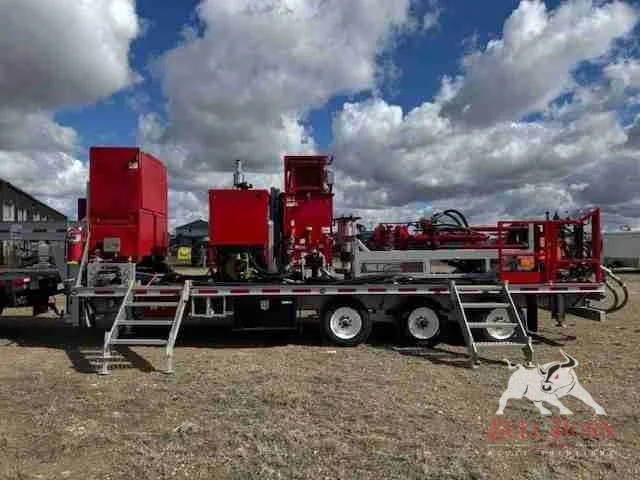

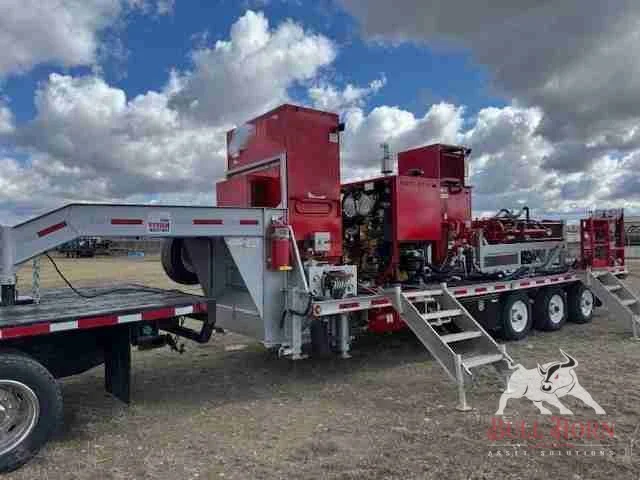

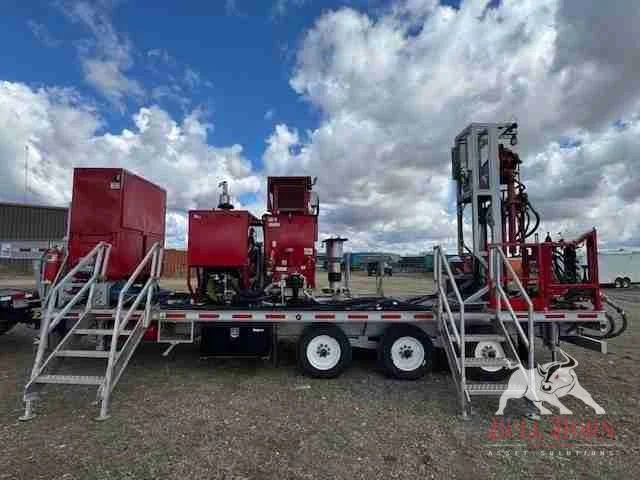

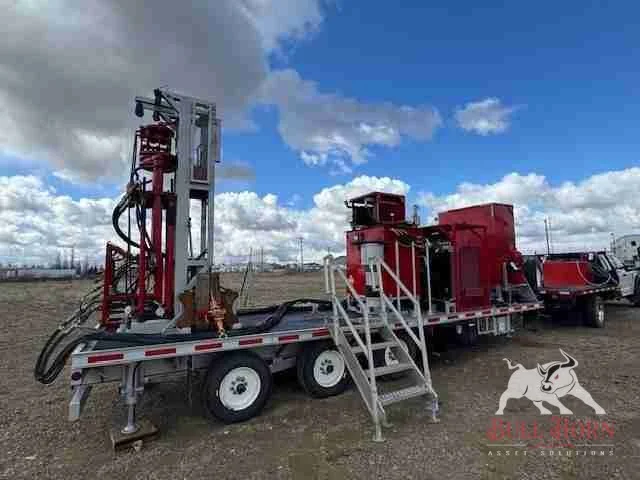

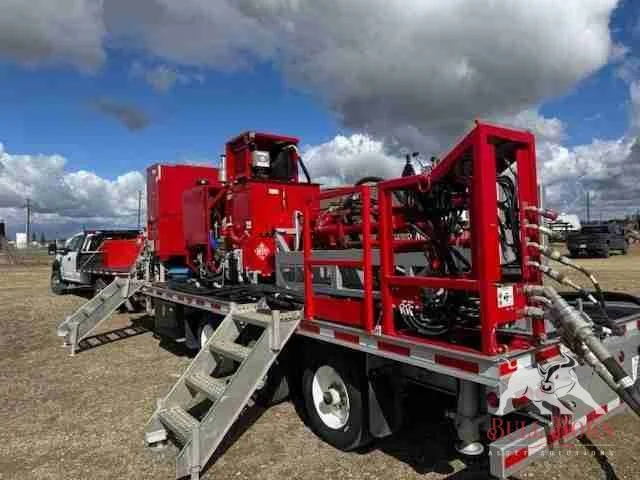

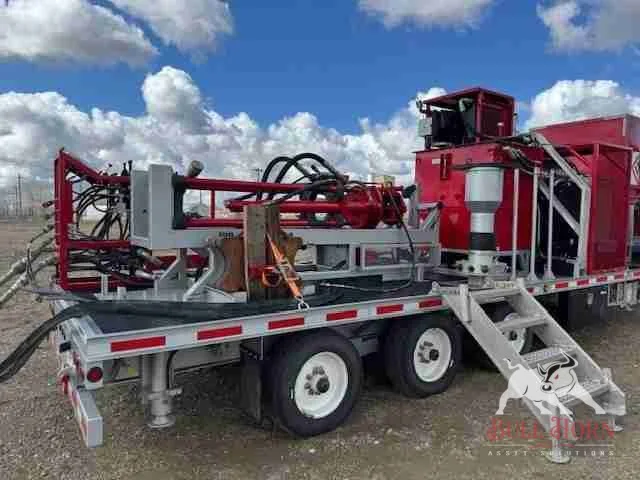

We're excited to offer a complete, fully operational snubbing package featuring two stand-alone, mini trailer-mounted push/pull snubbing units, included is a reliable F-550 haul truck. These units are fully equipped, turnkey, and field-ready--designed for quick mobilization and maximum efficiency in today's demanding environments.

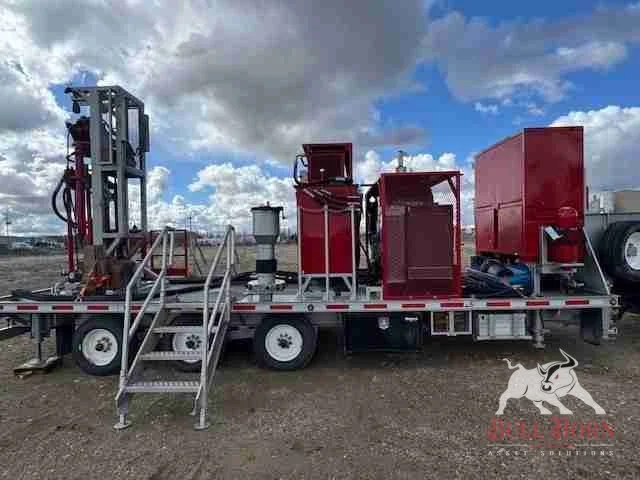

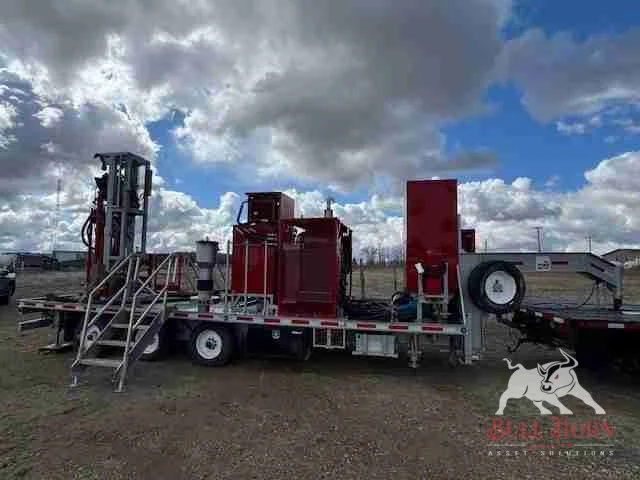

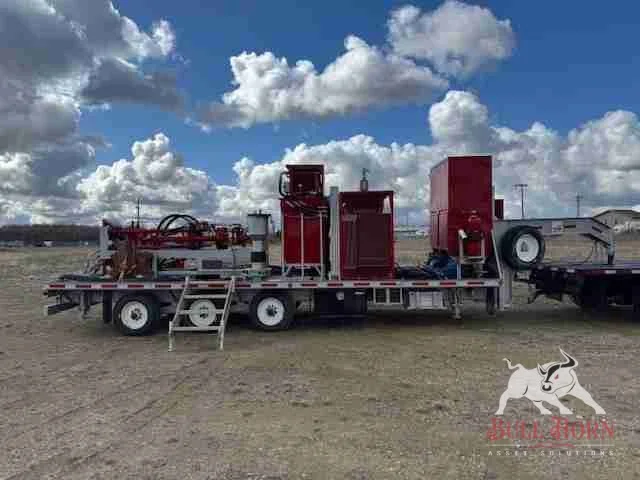

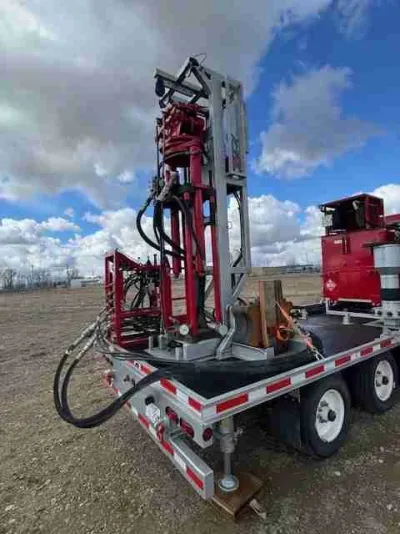

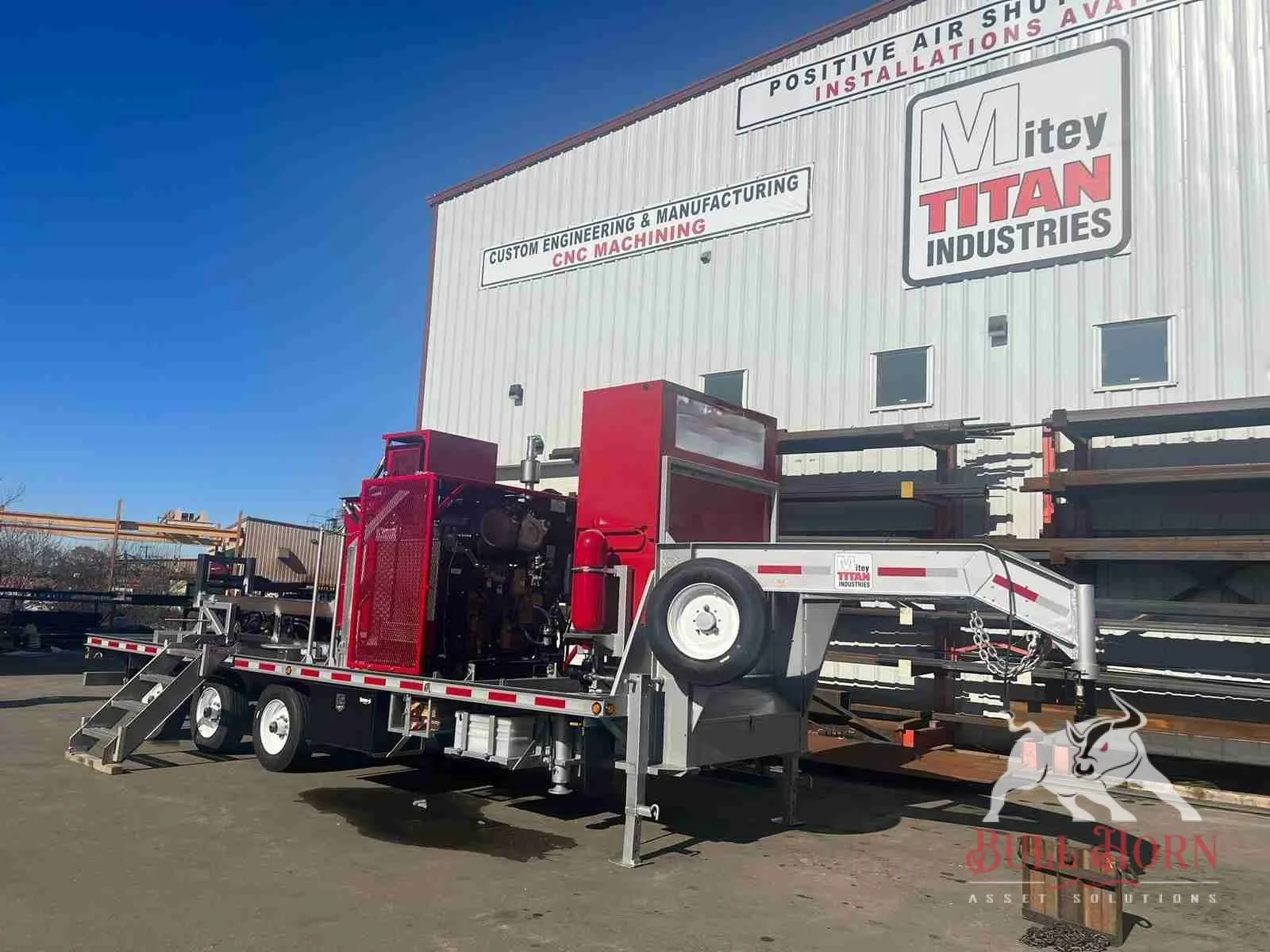

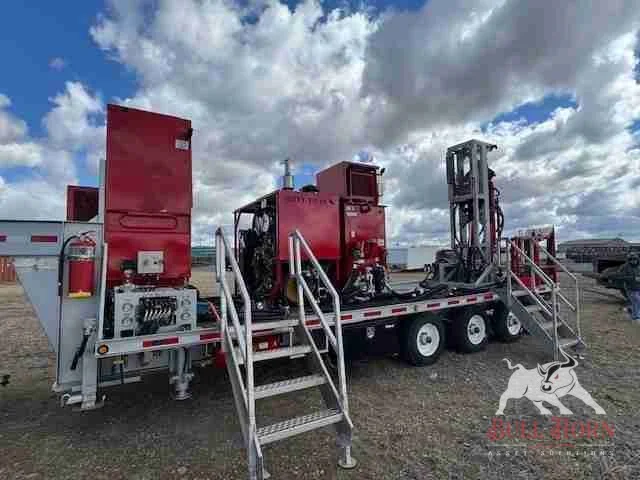

New unit:

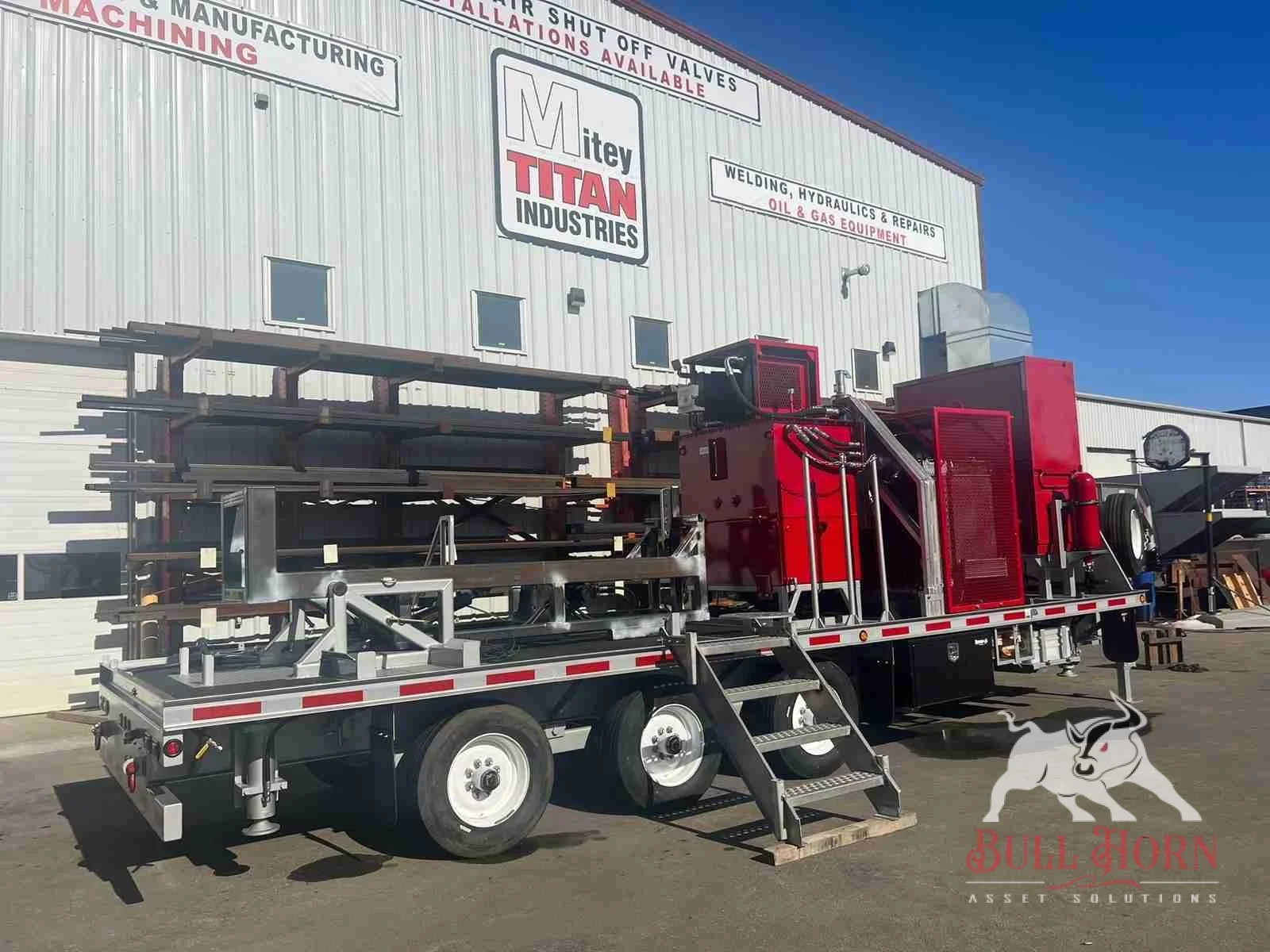

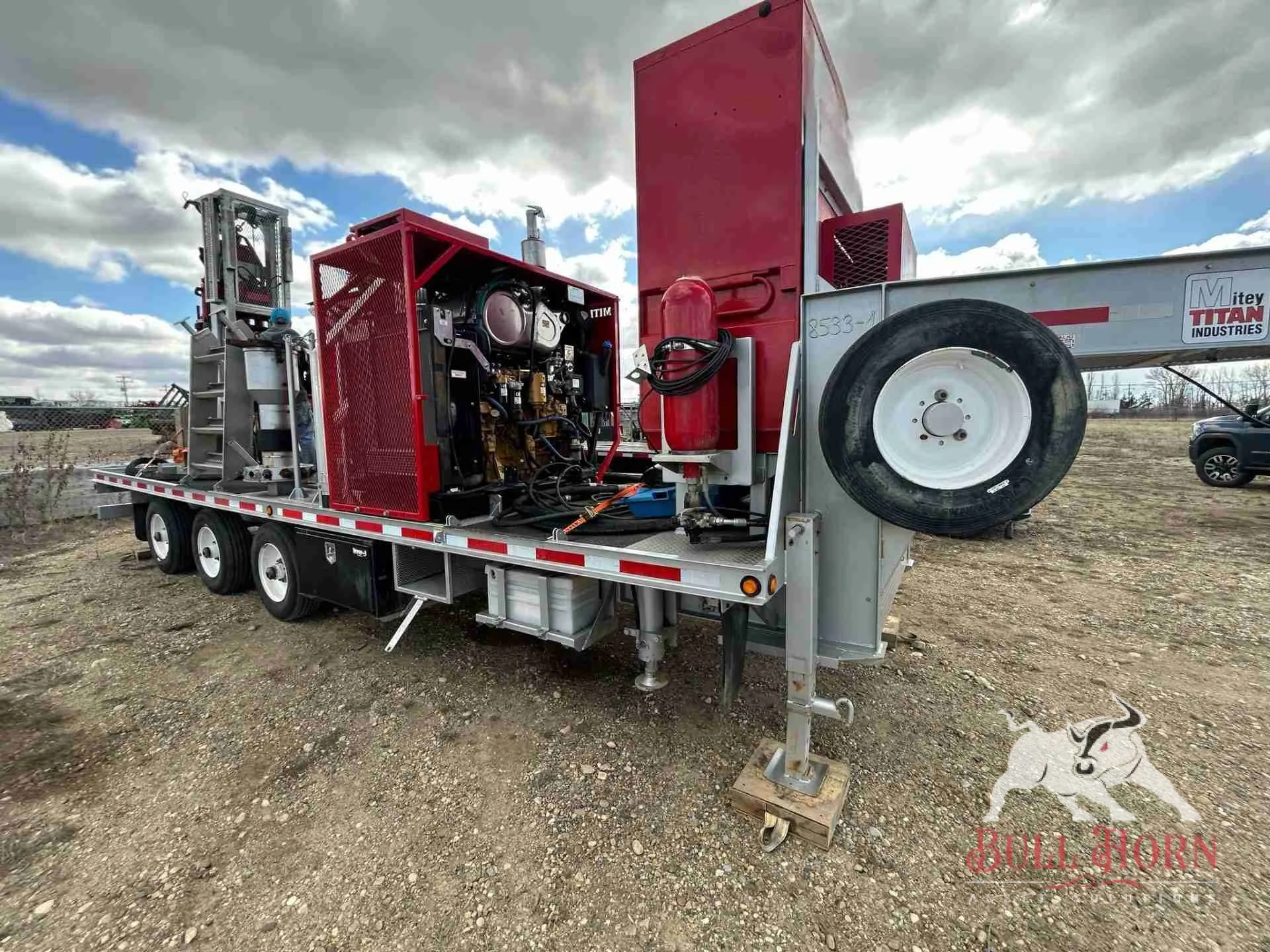

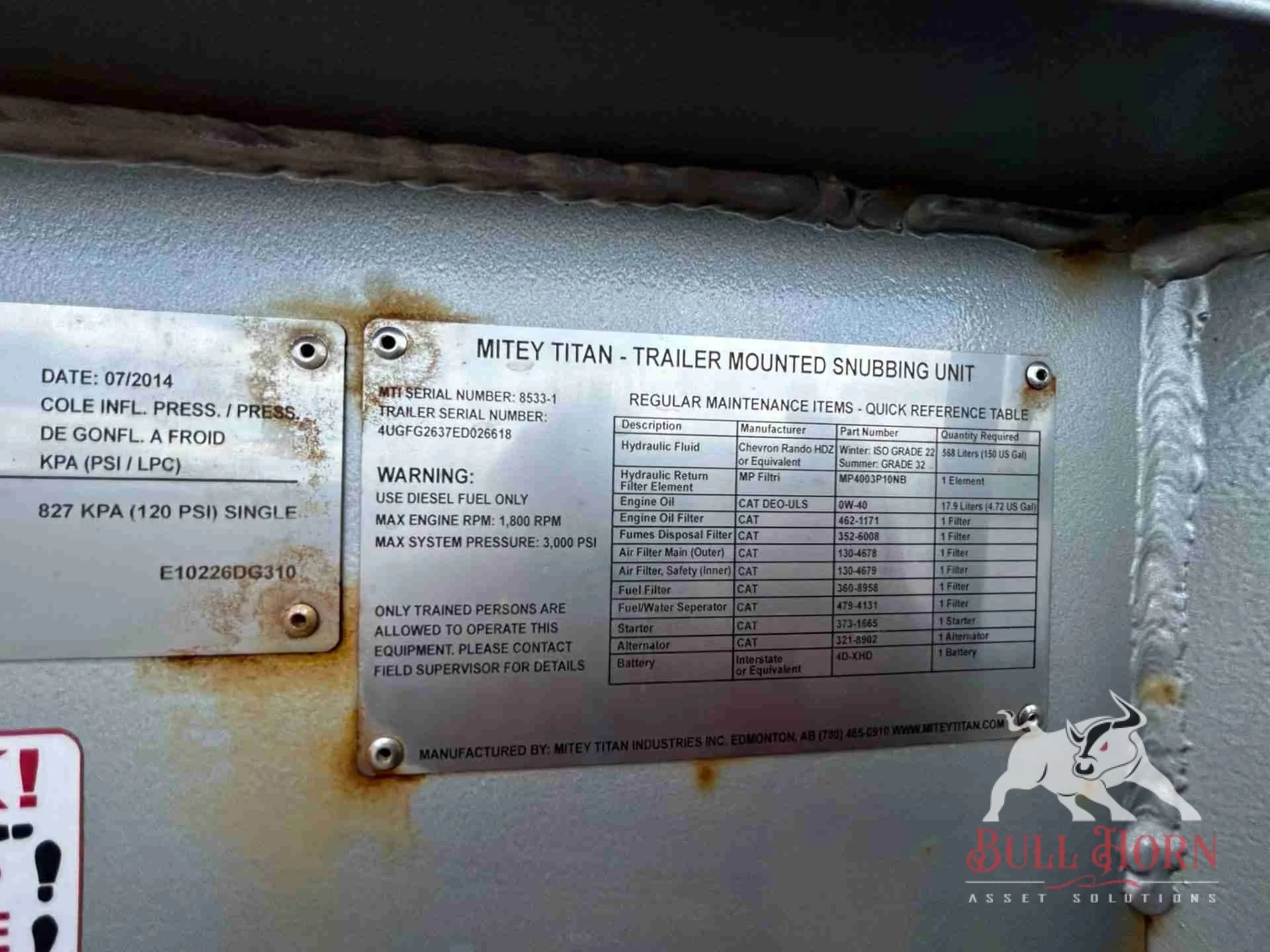

Built in 2024 built by Mighty Titan Industries
<ul>

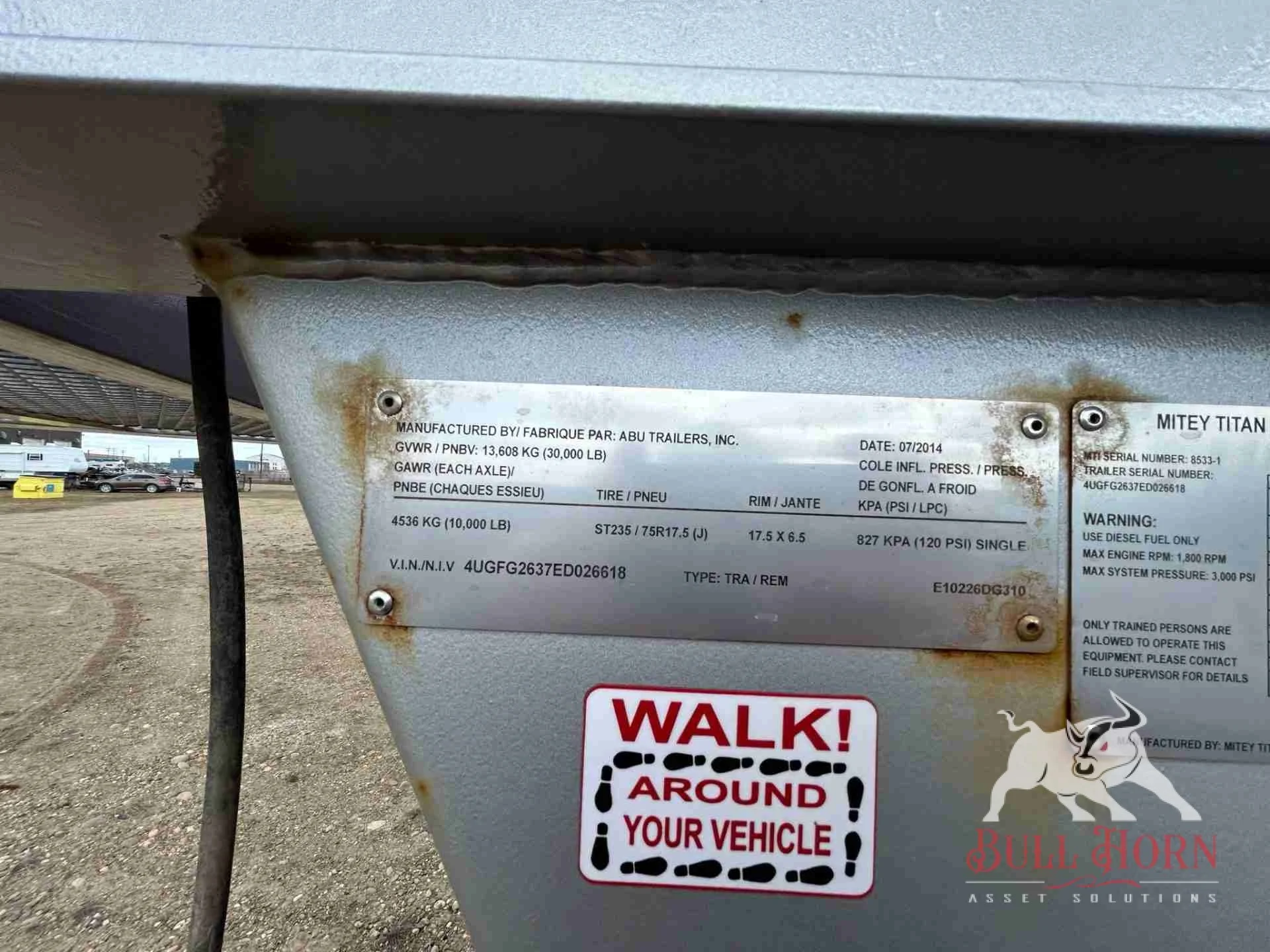

<li>Trailer is a ABU 26’ tri axle gooseneck with 10,000lb axles</li>
<li>Trailer is 100% self-contained to hold all fluid volumes in case of spill</li>

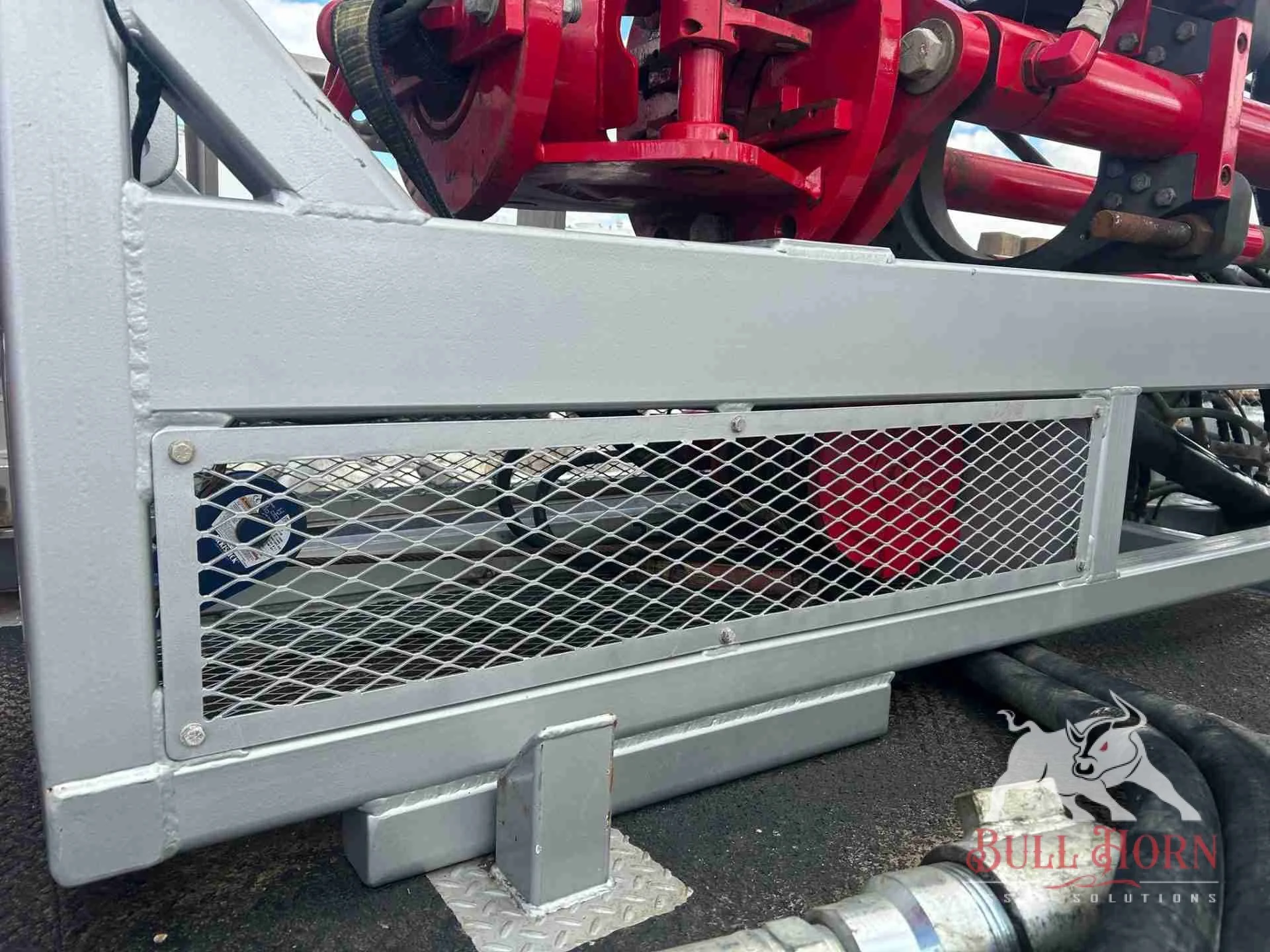

<li>All rotating and moving equipment is caged</li>

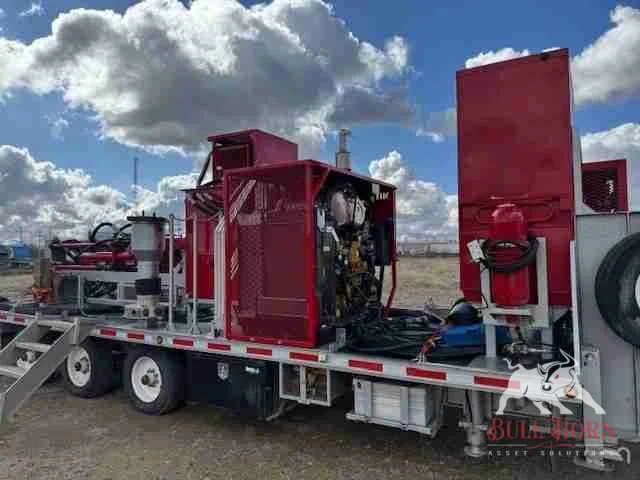

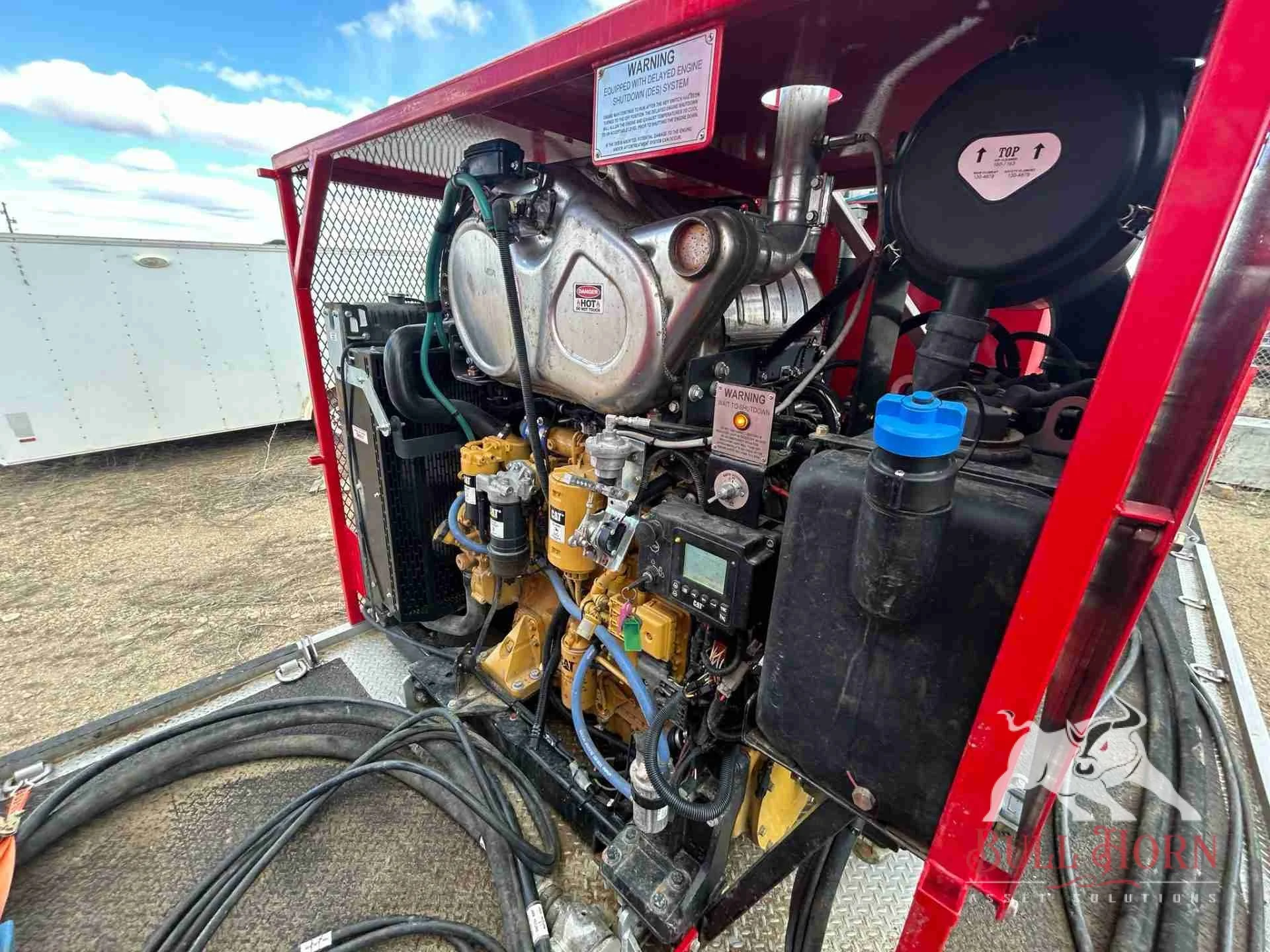

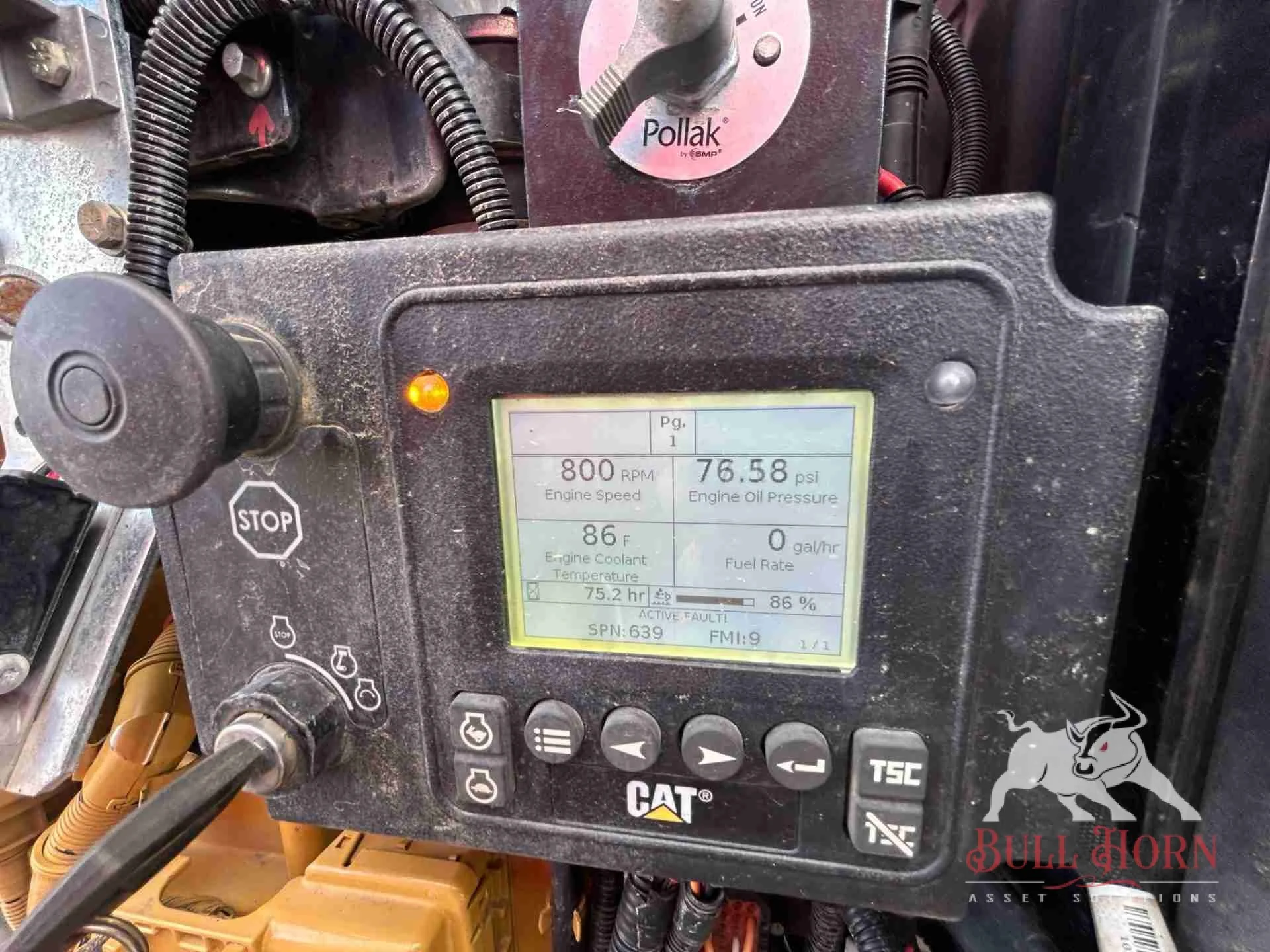

<li>Cat C7 ACERT tier 4 with approx. 72.5hrs</li>
<li>225 HP 805ft/lbs. @ 1800 rpm</li>

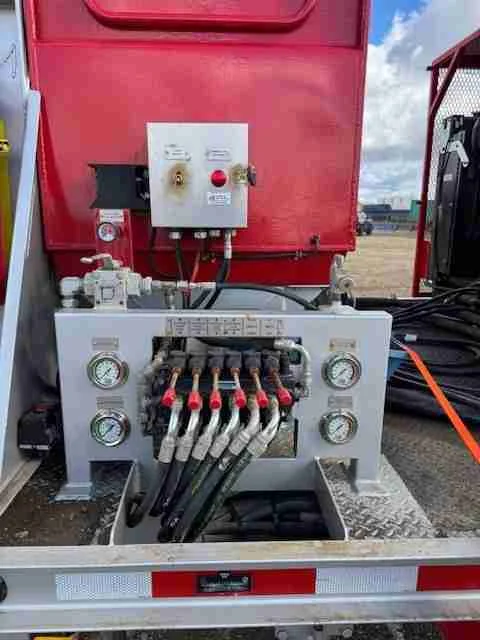

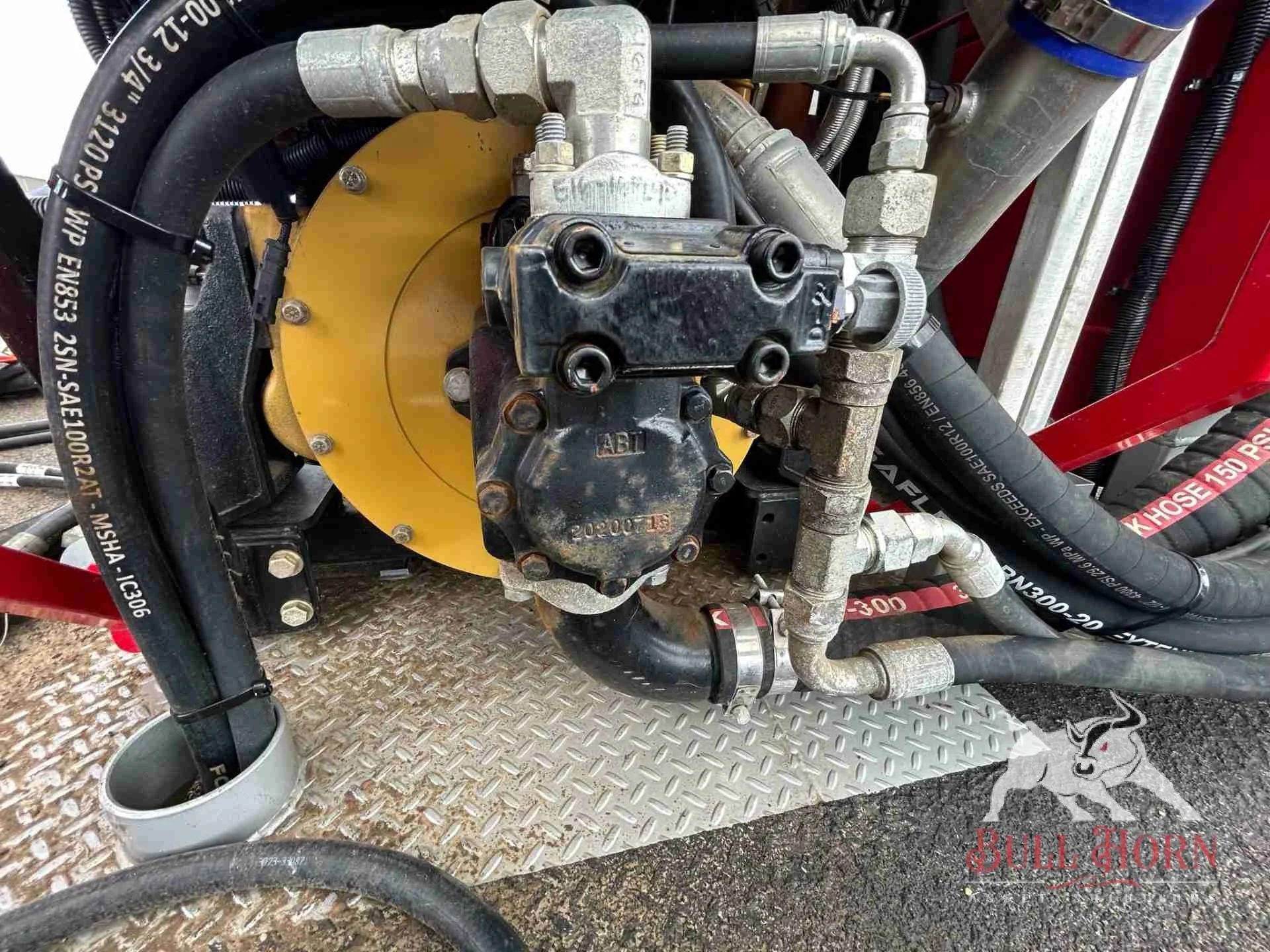

<li>Dennison hydraulic pump @ 65GPM @ 1800RPM system pressure 3000 PSI</li>

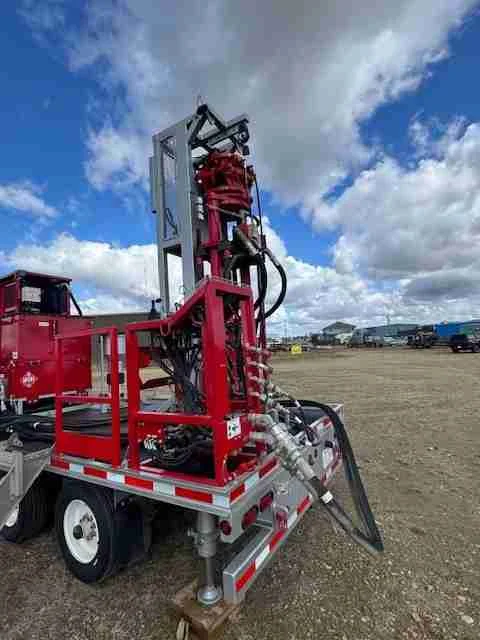

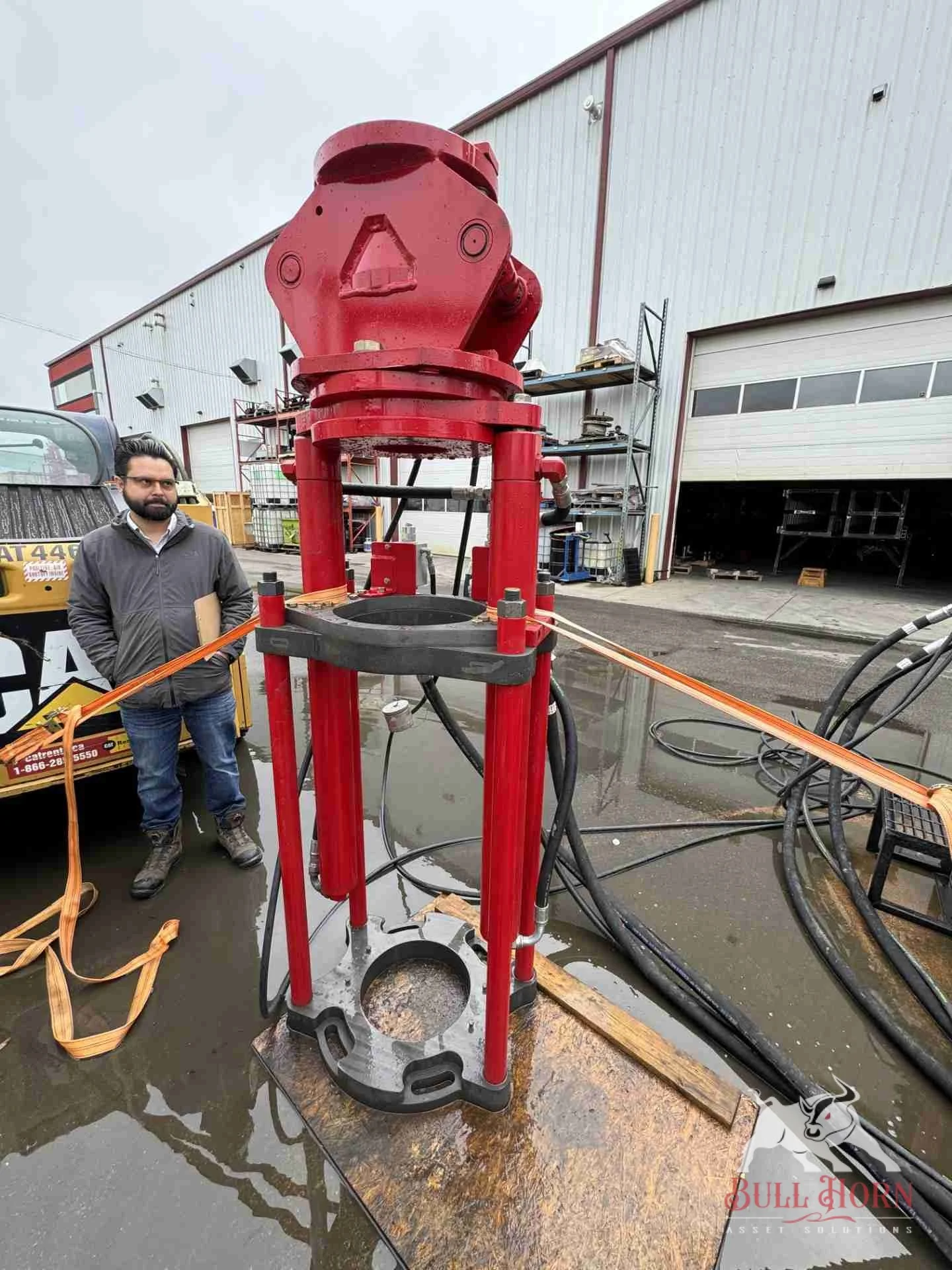

<li>Jack rating: Lift= 57,000 LBF (25,500 daN) Snub= 33,500 LBF (15,000 daN)</li>
<li>Stroke = 37.5”</li>
<li>Speed rating = 9.5 cycles/min</li>

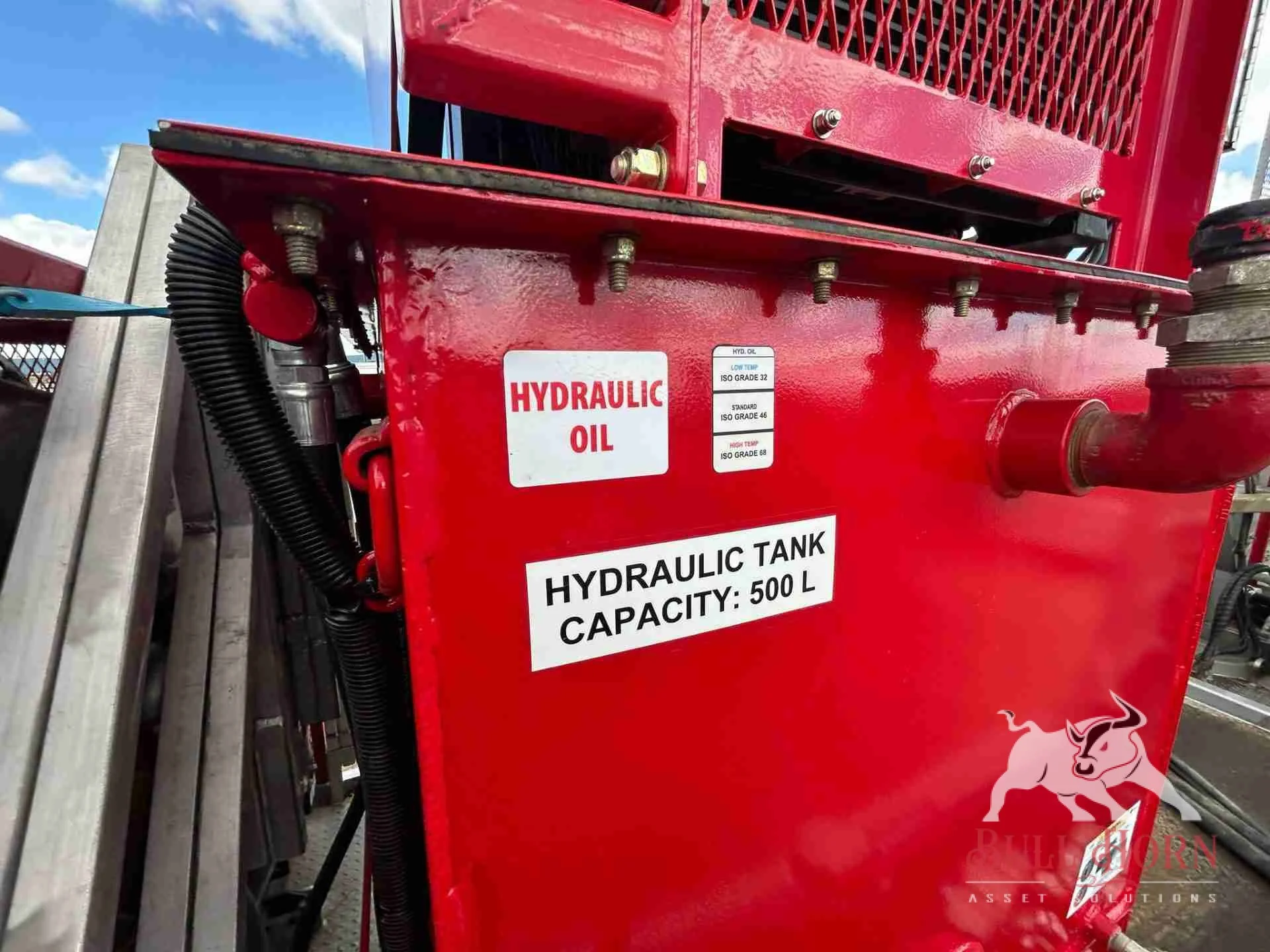

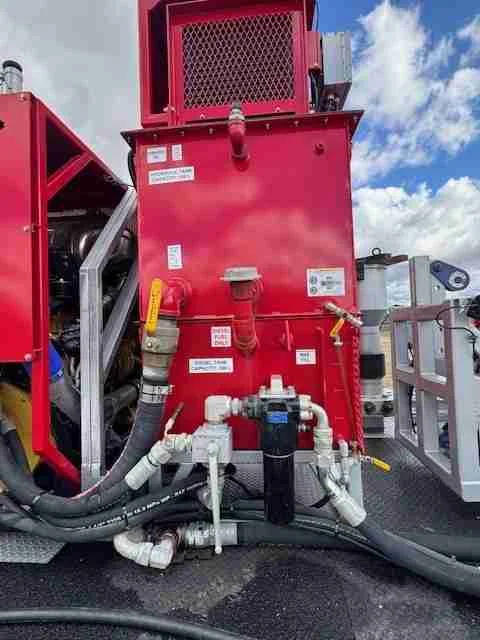

<li>Hydraulic tank cap 500L</li>
<li>Diesel tank comp 300L</li>

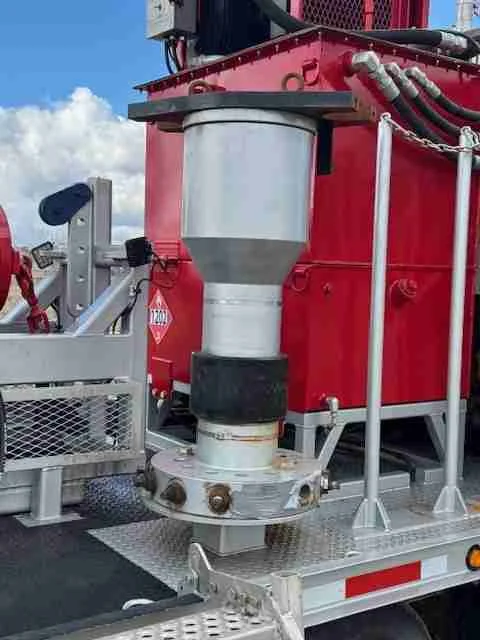

<li>Well controls = 7 1/16” RS100 stripping head, comes with Bowen union</li>

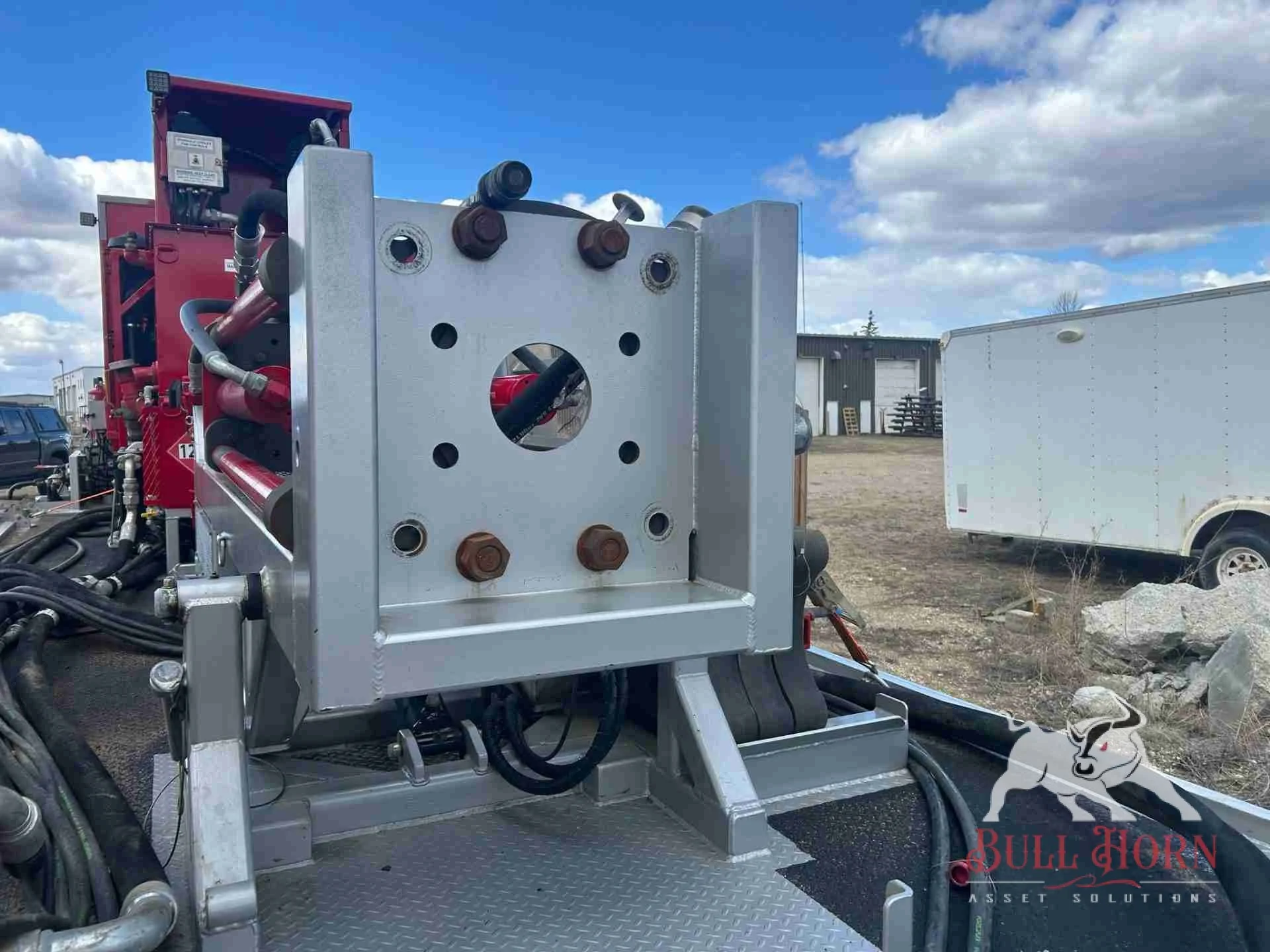

<li>Comes with 7 1/16” 3M, 9” 3M, 11” 3M and 13 5/8” 3M setting plates</li>
<li>Lubricators: 2ft, 4ft, 6ft of Bowen 7 1/16” 3000psi</li>
</ul>
Operating manual available upon request.

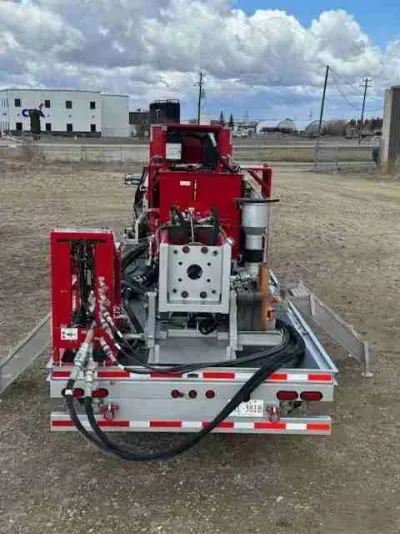

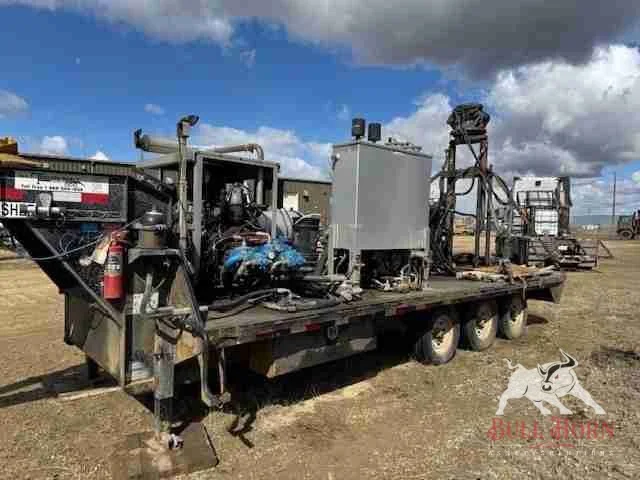

Used unit:
Built in 2018 by Canadian Pressure Control INC
<ul>
<li>Trailer is a Load Trail 24’ tri axle gooseneck with 7,000lb axles</li>
<li>Isuzu with 935hrs</li>
<li>Fixed displacement hydraulic system 131hp 313ft/lbs.</li>
<li>4 Eaton hydraulic pumps @ 110gpm @ 1800 rpm system pressure 3000 psi</li>
<li>Jack rating: Lift= 57,000lbf (25,500daN) Snub= 50,500lbf (22,500daN)</li>
<li>Stroke = 48”</li>
<li>Well controls = 7 1/16” RS100 stripping head, comes with Bowen union</li>
<li>Comes with 7 1/16” 3M, 9” 3M, 11” 3M and 13 5/8” 3M setting plates</li>
<li>Lubricators: 2ft, 4ft, 6ft of Bowen 7 1/16” 3000psi</li>
</ul>

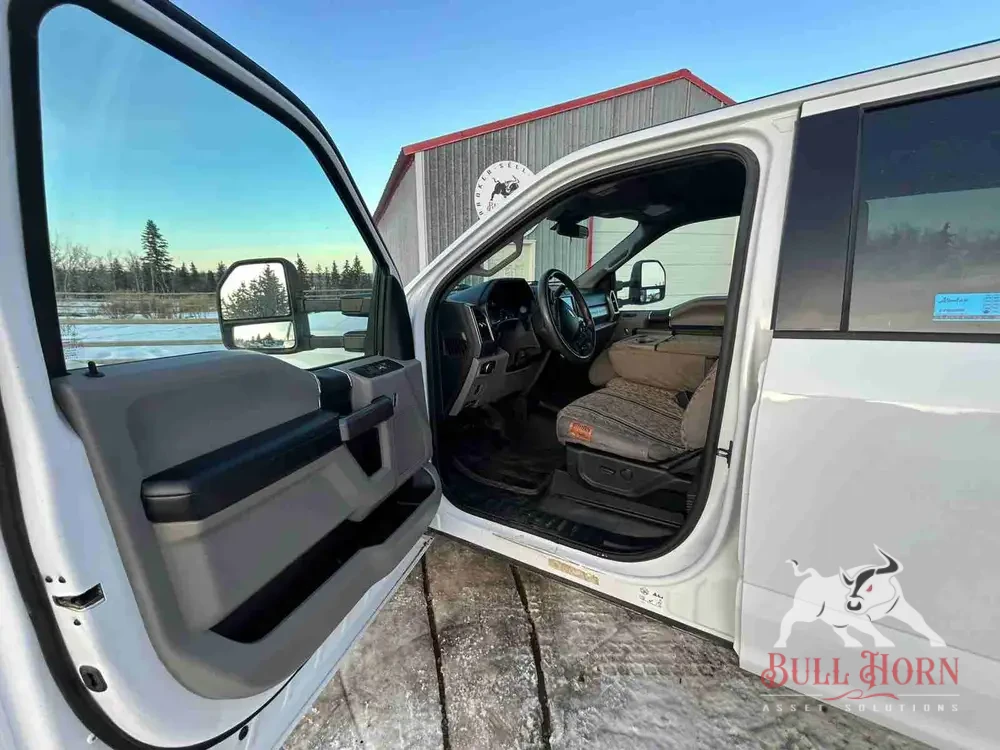

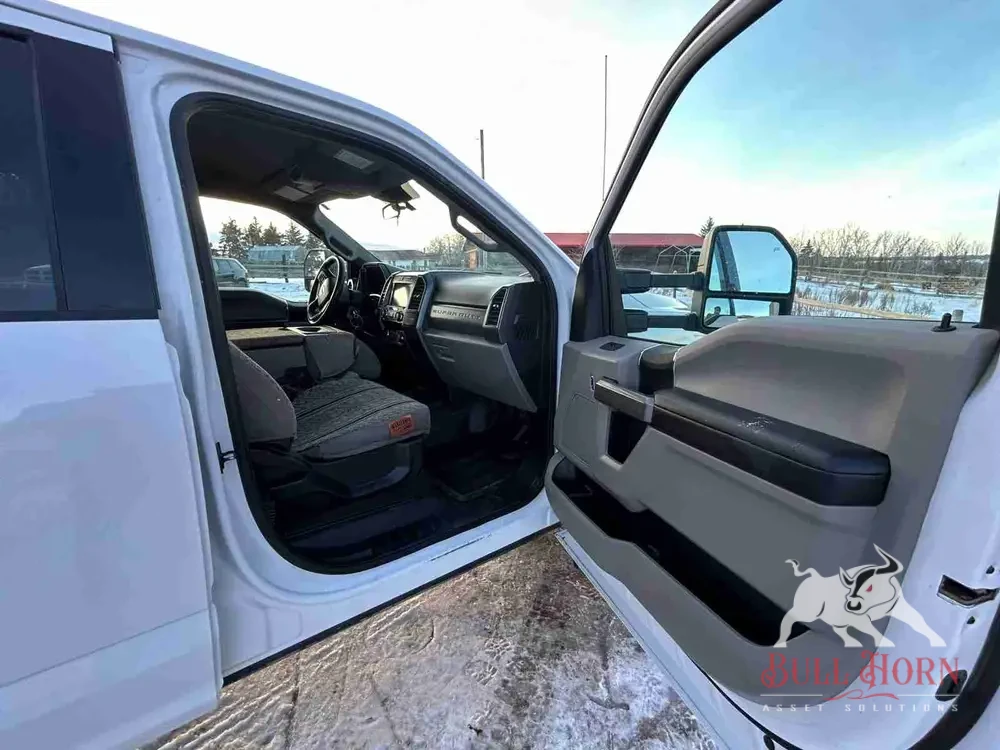

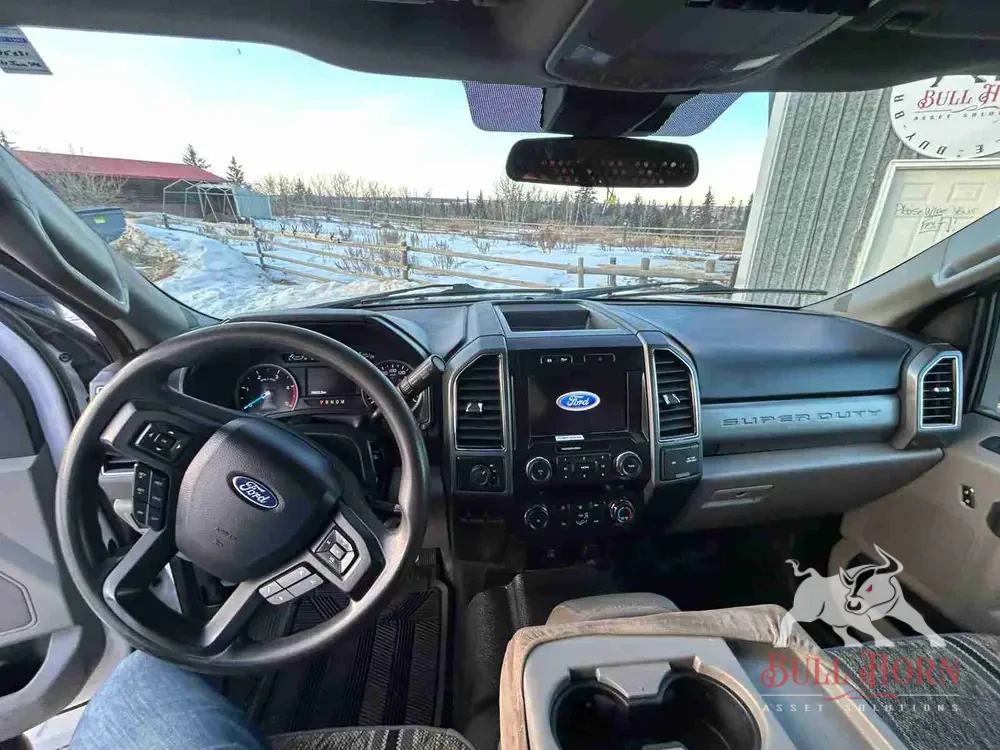

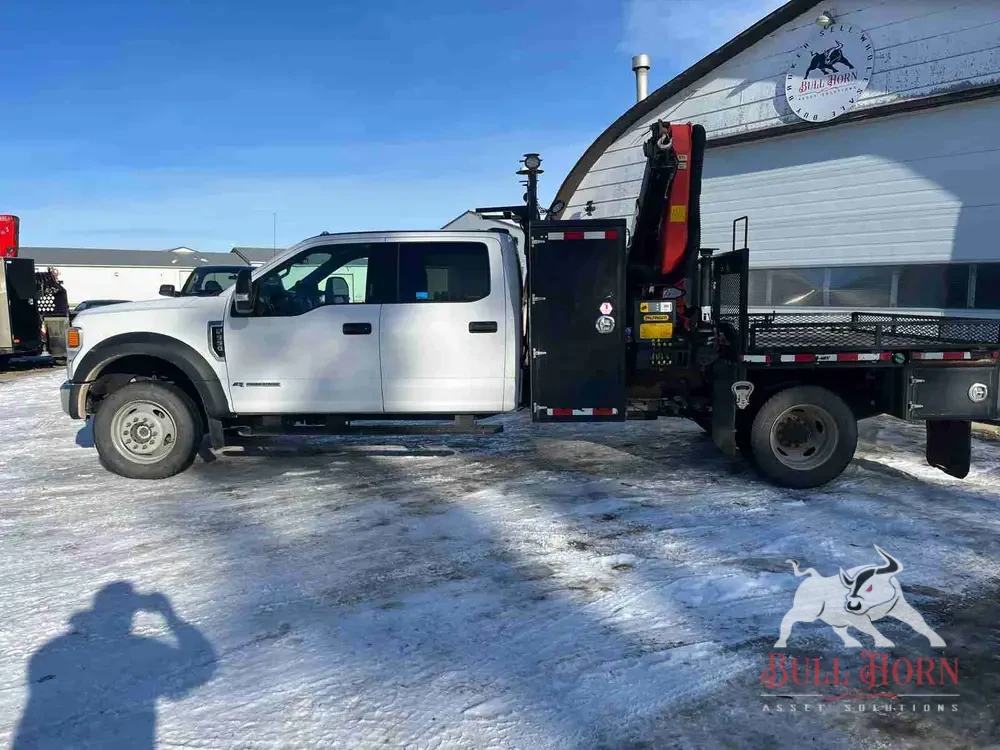

Haul truck:
<ul>

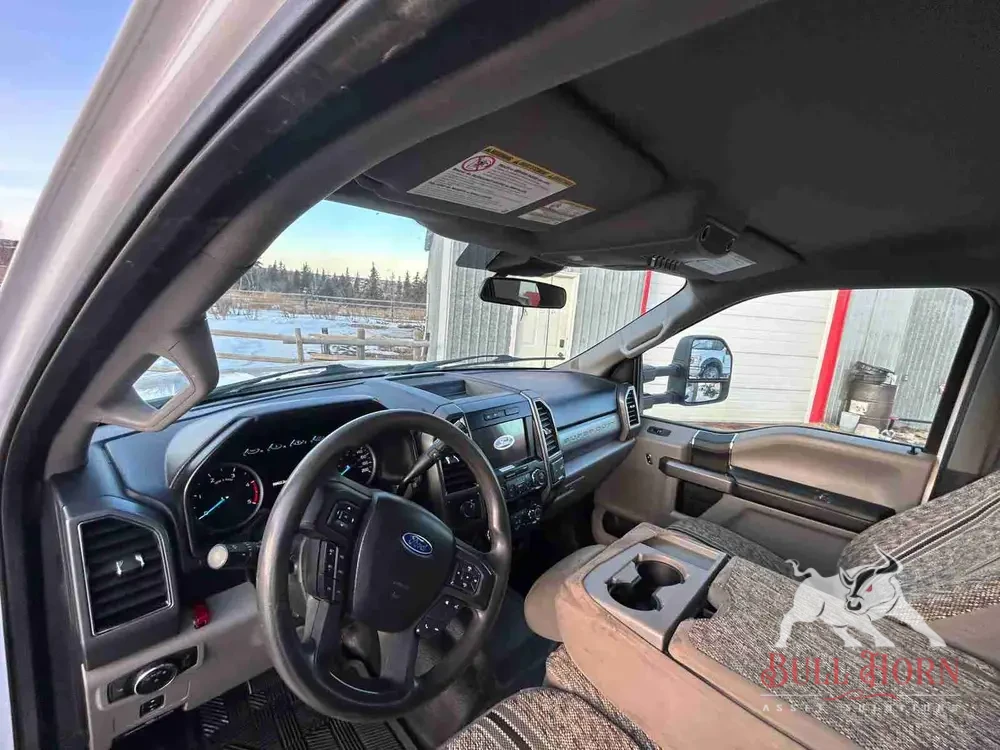

<li>2019 Ford F-550</li>
<li>6.7 power stroke</li>
<li>Automatic</li>
<li>4x4</li>
<li>XLT</li>
<li>Dually</li>

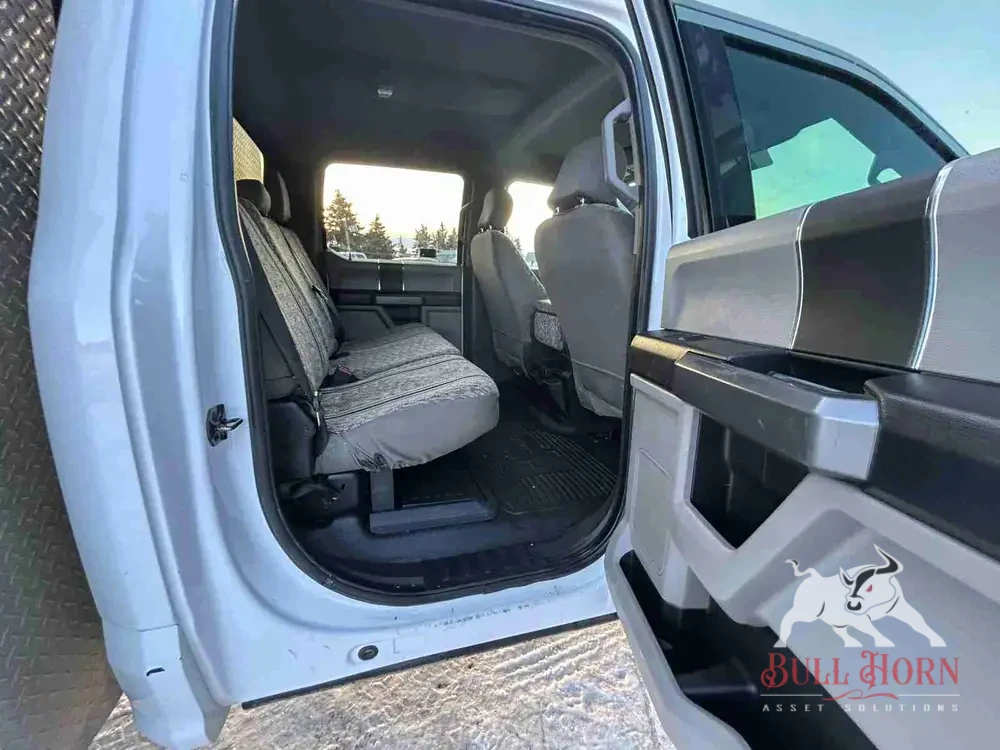

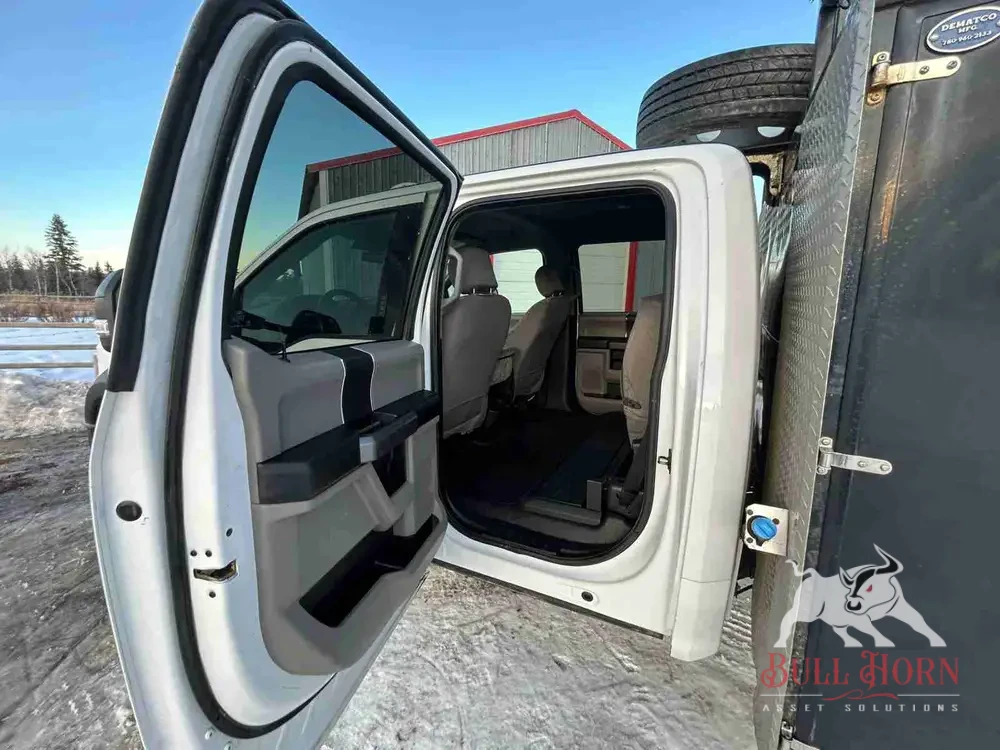

<li>Crew Cab</li>
<li>12’ deck</li>
<li>400l tidy tank with pump</li>
<li>Aprox. 80,726km and 4782hrs</li>
</ul>
Specifications
| Year | 2000 |
| Make | Mini |
| Model | Stand Alone Snubbing Units w/ 2019 Ford F550 Haul Truck |
| Body Style | oilfield_equipment |
| Mileage | 80,726 km |
| Transmission | automatic |
| Drivetrain | 4wd |
| Fuel Type | diesel |
| Stock # | BH-6826 |
